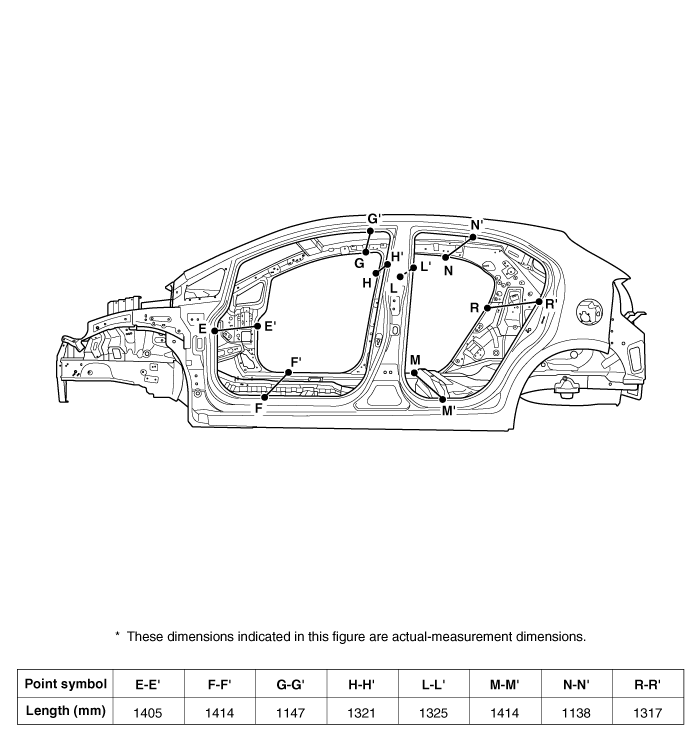

Kia Rio: 5Door Side Body C - Body Dimensions - Body (Interior and Exterior) - Kia Rio UB 2012-2025 Service ManualKia Rio: 5Door Side Body C





Side outer panel notch

Side outer panel notch

Side outer panel notch




Side outer panel notch

Side outer panel notch

Side outer panel notch




Side outer panel notch

Side outer panel notch
