Kia Rio: BCM connectors

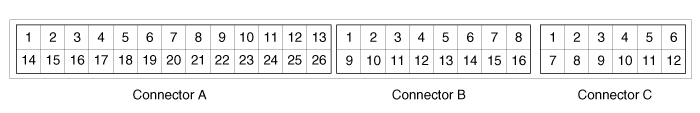

| Pin No. |
Connector A |
Connector B |
Connector C |
| 1 |
Battery (+) |
K_LINE |
Turn signal switch (RH) |
| 2 |
Ignition 2 |
Central door lock/ unlock switch |
Turn signal switch (LH) |
| 3 |
Ignition 1 |
RPAS OFF switch |
Parking brake switch |
| 4 |
Tailgate handle switch |
Hazard switch |
Auto light switch |
| 5 |
Driver door key unlock switch |
Power window unlock switch |
- |
| 6 |
Driver door key lock switch |
Power window lock switch |
Ground 3 |
| 7 |
Tail lamp switch |
Wiper intermittent volume |
CAN_H |
| 8 |
Seat belt switch |
LIN |
CAN_L |
| 9 |
Assist seat belt switch |
Head lamp low switch |
Auto light power |
| 10 |
Front fog lamp switch |
Door enable |
Auto right signal |
| 11 |
Rear fog lamp switch |
Crash input |
Burglar horn relay |
| 12 |
Head lamp high switch |
Defogger switch |
Burglar alram relay |
| 13 |
Ground 1 |
Wahser switch |
|
| 14 |
Rear left door switch |
Wiper mist switch |
|
| 15 |
Rear left door unlock switch |
Wiper intermittent switch |
|
| 16 |
Inhibit "R" |
Rear washer switch |
|
| 17 |
Key IN switch |
|
|
| 18 |
ACC |
||
| 19 |
Hood switch |
||
| 20 |
Driver door unlock switch |
||
| 21 |
Assist door unlock switch |
||
| 22 |
Rear right door unlock switch |
||
| 23 |
Driver door switch |
||
| 24 |
Assist door switch |
||
| 25 |
Rear right door switch |
||
| 26 |
Tailgate switch |

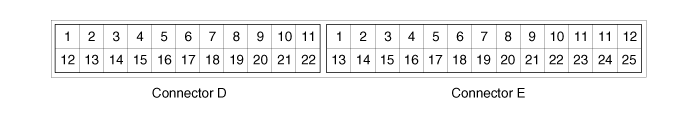

| Pin No. |
Connector D |
Connector E |
| 1 |
Power window relay |
Static bend power |
| 2 |
Assist seat belt indicator |
Static bend (RH) |
| 3 |
Room lamp |
Turn power |
| 4 |
Rear wiper relay |
Rear right turn signal |
| 5 |
Tail lamp relay |
Rear left turn signal |
| 6 |
Head lamp relay |
Front right turn signal |
| 7 |
Head lamp high relay |
Front left turn signal |
| 8 |
Front fog lamp relay |
Rear left seat belt switch |
| 9 |
Rear fog lamp relay |
Center seat belt switch |
| 10 |
Rear deicer relay |
Rear right seat belt switch |
| 11 |
- |
Assist door key unlock switch |
| 12 |
AV tail |
Interior lamp power |
| 13 |
Navigation wake up |
Interior lamp output |
| 14 |
Wiper relay |
Static bend (LH) |
| 15 |
Hazard indicator |
Break switch |
| 16 |
RPAS OFF indicator |
Central door lock indicator |
| 17 |
Ground 2 |
Rear wiper switch |
| 18 |
Door lock relay |
Rear wiper INT switch |
| 19 |
Door unlock relay |
Head lamp low control |
| 20 |
Dead lock relay |
AT solenoid |
| 21 |
Tailgate unlock relay |
Side air bag option |
| 22 |
Key hole illumination |
Rear right seat belt indicator |
| 23 |
|
Center seat belt indicator |
| 24 |
Rear left seat belt indicator |
|
| 25 |
Dedicated DRL outupt |
|
| 26 |
Dedicated DRL power |
Components
...
Input/ Output Description
Function
I/O
Connector No
Description
Active
Remark
Power
B+
A1
Supply power to BCM
Power
...
