Kia Rio: Components - ESC(Electronic Stability Control) System - Brake System - Kia Rio UB 2012-2025 Service ManualKia Rio: Components

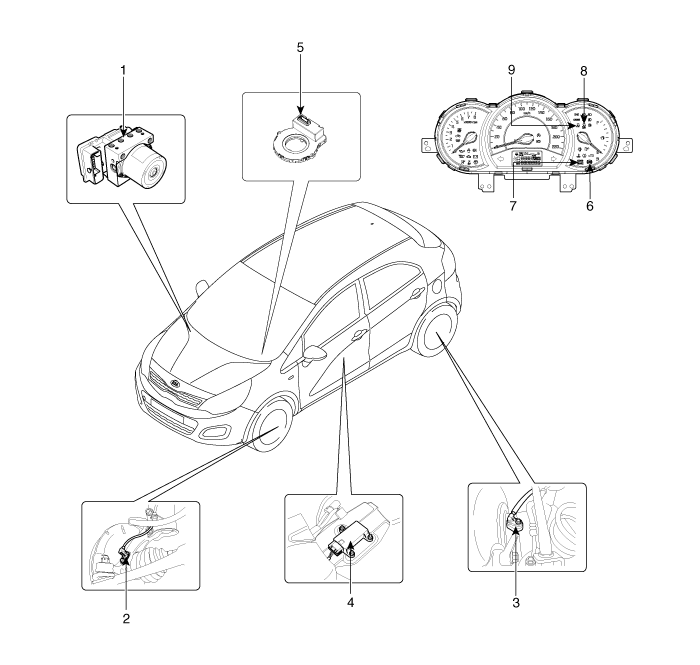

1. HECU module
2. Front wheel speed sensor
3. Rear wheel speed sensor
4. Yaw rate & G sensor
5. Steering angle sensor
6. ABS Warning lamp
7. Parking brake/EBD warning lamp
8. ESC OFF lamp
9. ESC Function/Warning lamp
