Kia Rio: Components

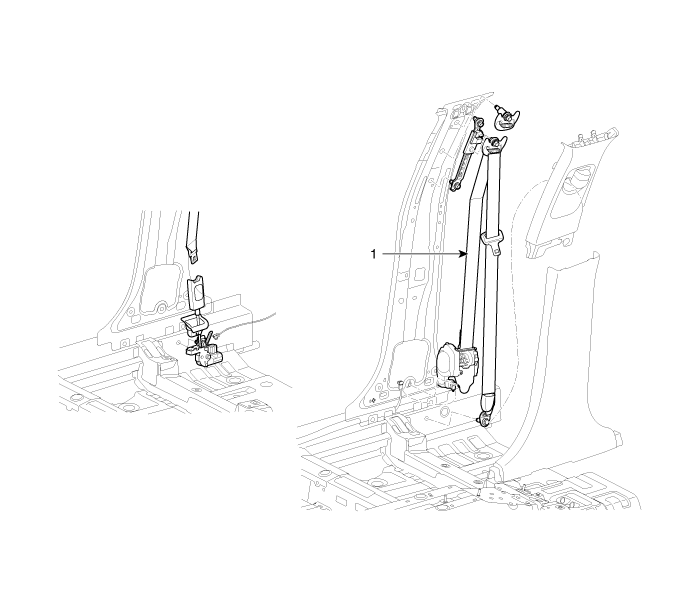

[Front]

(5 Door, 4 Door)

1. Front seat belt
2. Height adjust

3. Front seat belt anchor pretensioner (NA : North america)

[Rear]

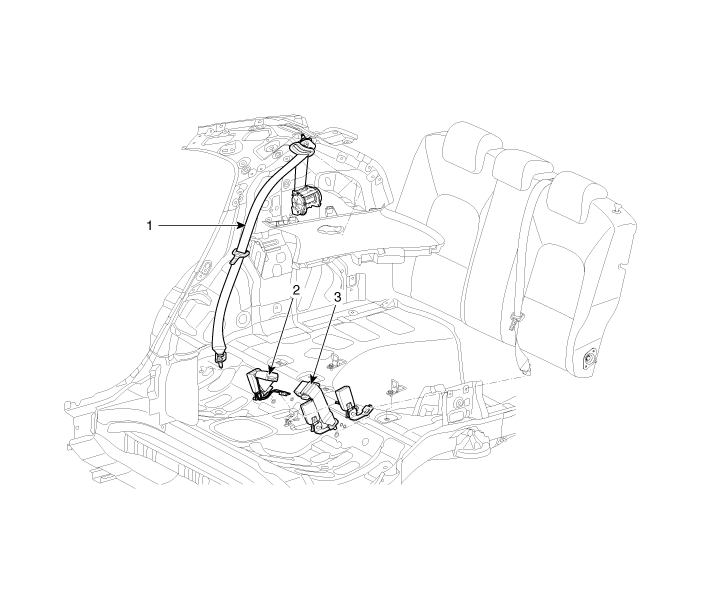

(5 Door)

1. Rear seat belt
2. Rear seat belt buckle [LH]

3. Rear seat belt buckle [RH]

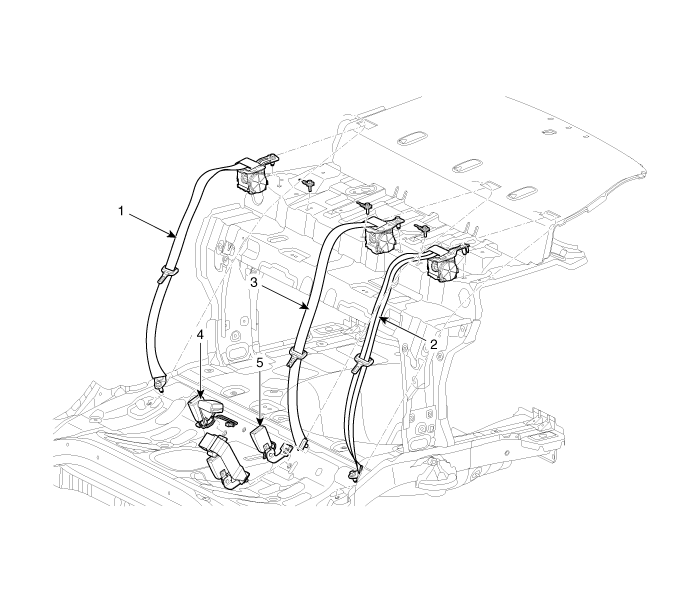

(4 Door)

1. Rear seat belt [RH]
2. Rear seat belt [LH]
3. Rear seat belt [Center]

4. Rear seat belt buckle [LH]
5. Rear seat belt buckle [RH]

Seat Belt

...

Front Seat Belt Replacement

Front Seat Belt Replacement • When installing the belt, make sure not to damaged the ...
