Kia Rio: Description

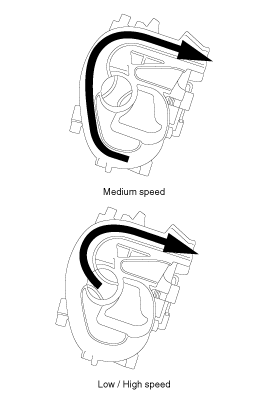

Variable Intake manifold Solenoid (VIS) valve is installed on the intake
manifold. The VIS valve controls the vacuum modulator which activates a valve
in the intake manifold. The ECM opens or closes this valve according to engine
condition (Refer to below table).
| Engine condition |
VIS valve |
Operation |
| Medium speed |
Closed |
Increasing engine performance in low engine speed by reducing
intake interference among cylinders |
| Low / High speed |
Open |
Minimizing intake resistance by shortening intake manifold length
and increasing area of air entrance |
Specification
Item
Specification
Coil resistance (Ω)
30.0 ~ 35.0 [20°C(68°F)]
...
