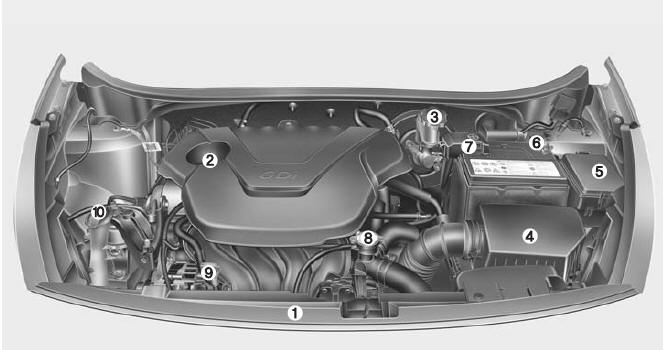

Kia Rio: Engine compartment
1. Engine Coolant Reservoir
2. Engine Oil Filler Cap
3. Brake/Clutch Fluid Reservoir
4. Air Cleaner
5. Fuse Box
6. Negative Battery Terminal
7. Positive Battery Terminal
8. Radiator Cap
9. Engine Oil Dipstick
10. Windshield Washer Fluid Reservoir
Instrument panel overview
1. Instrument cluster
2. Horn
3. Driver’s front air bag
4. Light control/Turn signals
5. Wiper/Washer
6. Ignition switch or ENGINE START/ STOP button
7. Hazard warning flasher switch
8. Audio ...
See also:
Adjustment
Brake Pedal Height and Free Play
1.
Disconnect the stop lamp switch connector (A).
2.
Adjust the brake pedal height (A) as illustrat ...
Inspection
Camshaft Assembly
1.
Inspect the cam height.
Using a micrometer, measure the cam height.
Cam height
Intake : 44.15mm (1.7382in ...
DC/DC Converter: Circuit Diagram
In the ISG mode, if the power of an audio system turnsOFF by drawdown
while “Auto Starting” or “Idle Starting”functi ...
