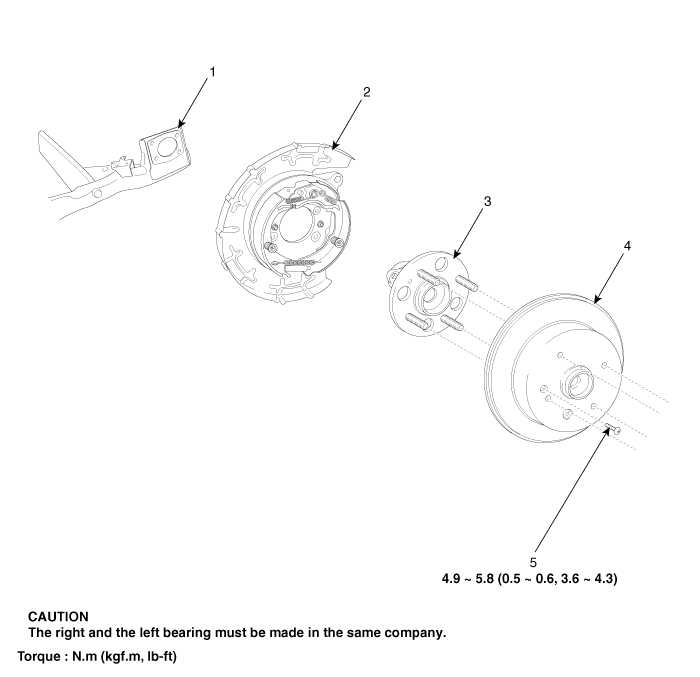

[Drum Type]


1. Rear torsion beam assembly
2. Brake assembly
3. Rear wheel hub assembly
4. Rear brake disc
5. Rear brake disc mounting screw

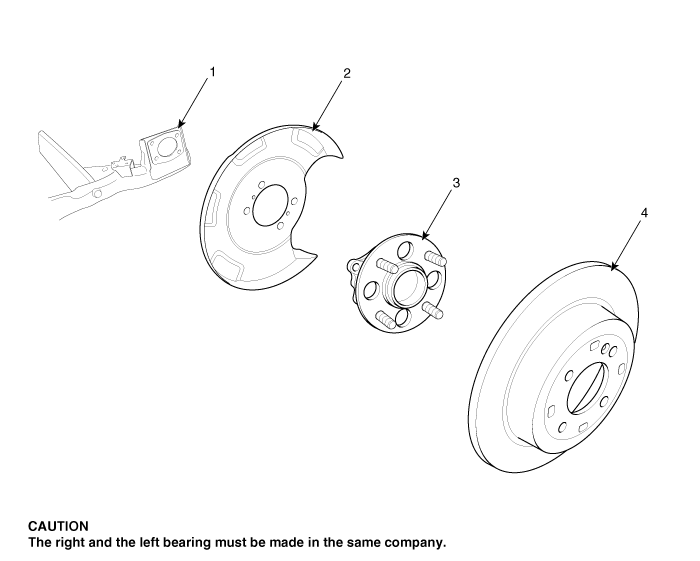

[Disc Type]


1. Rear torsion beam assembly
2. Dust cover

3. Rear wheel hub assembly
4. Rear brake disc

Rear Axle Assembly
...

Rear Hub - Carrier Replacement
[Drum Type] 1. Remove the rear wheel & tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) ...
