Kia Rio: Special Service Tools - Automatic Transaxle System - Kia Rio UB 2012-2024 Service ManualKia Rio: Special Service Tools

Tool
(Number and Name)
 Illustration
 Use
09200-3N000
Engine support fixture (Beam)


Removal and installation of the transaxle.
Use this adapter (SST No. : 09200-1P100, 4X000) with the supporter (SST No. : 09200-2S200).
※Permit operating with 09200-38001.
09200-1P100
Engine support fixture (Adapter)


Removal and installation of the transaxle.
Use this beam (SST No. : 09200-38001/09200-3N000) with the supporter (SST No. : 09200-2S200) and adapter (SST No. : 09200-4X000)
09200-4X000
Engine support fixture (Adapter)


Removal and installation of the transaxle.
Use this beam (SST No. : 09200-38001/3N000) with the supporter (SST No. : 09200-2S200) and adapter (SST No. : 09200-1P100)
09200-2S200
Engine support fixture
(Supporter)


Removal and installation of the transaxle.
Use this beam (SST No. : 09200-38001/09200-3N000) with the adapter (SST No. : 09200-1P100, 4X000)
09452-26100
Oil seal installer


Installation of transaxle case oil seal.
[Using with handle (SST No.:09231-H1100)]
09231-H1100
Bar


Installation of transaxle case oil seal.
[Using with oil seal installer (SST No.:09452-26100)]
09480-A3800
Inhibitor switch guide pin

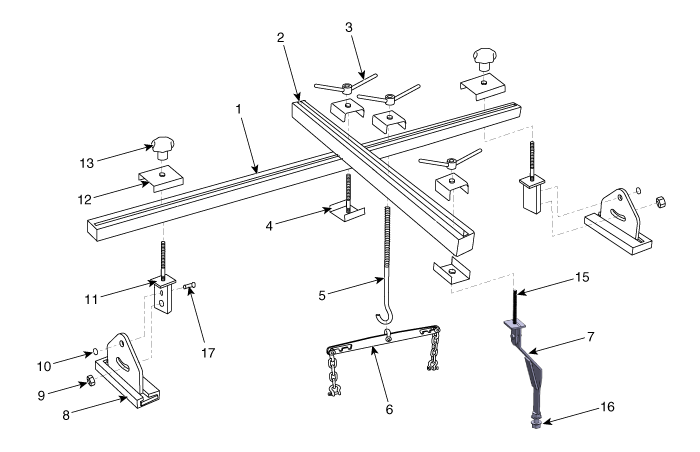

※ Engine support fixture special tool assembly drawing


1. 09200-3N000(Main bar)
2. 09200-3N000(Sub bar)
3. 09200-3N000(Handle)
4. 09200-3N000(Stopper)
5. 09200-3N000(Bolt-1)
6. 09200-4X000 (Adapter)
7. 09200-1P100(Supporter)
8. 09200-2S200(Supporter)
9. 09200-3N000(Nut)
 10. 09200-3N000(Snap ring)
11. 09200-3N000(Sub fixture)
12. 09200-3N000(Stopper)
13. 09200-3N000(Nut)
14. 09200-2S100(Spacer)
15. 09200-1P100(Sub fixture)
16. 09200-1P100(Nut)
17. 09200-3N000(Pin)

Lubricants
Item  Specified lubricant  Quantity Transaxle fluid ATF SP-Ⅳ or equivalent  7.3L (1.93 U.S gal.,  7.71 U.S.qt., 6.42 Imp.q ...
