Kia Rio: Waveform - Crankshaft Position Sensor (CKPS) - Engine Control System - Engine Control / Fuel System - Kia Rio UB 2012-2024 Service ManualKia Rio: Waveform

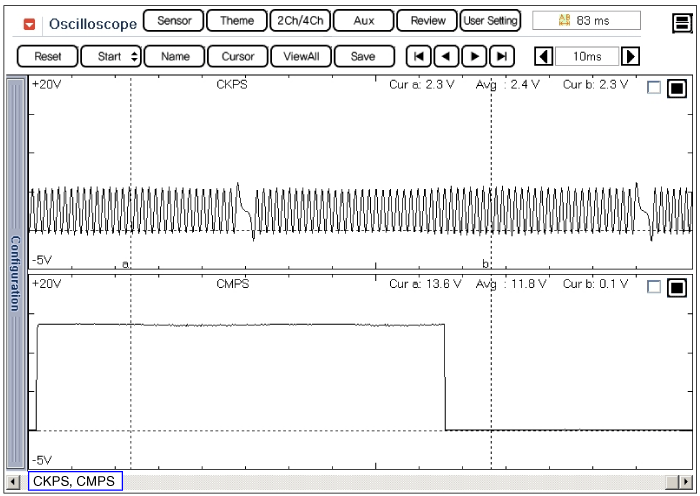

This example shows a typical Crankshaft Position Sensor(CkPS) and Camshaft Position Sensor(CMPS) waveform at idle.The PCM controls the injection and ignition timing by using these signals.
Generally CkPS signal is used to detect the piston's position and CMPS signal is used to detect the Top Dead Center of each cylinder.
Specification
Item Specification Coil Resistance (Ω) 774 ~ 946 [20°C (68°F)] ...

Circuit Diagram
(M/T) (A/T) ...
