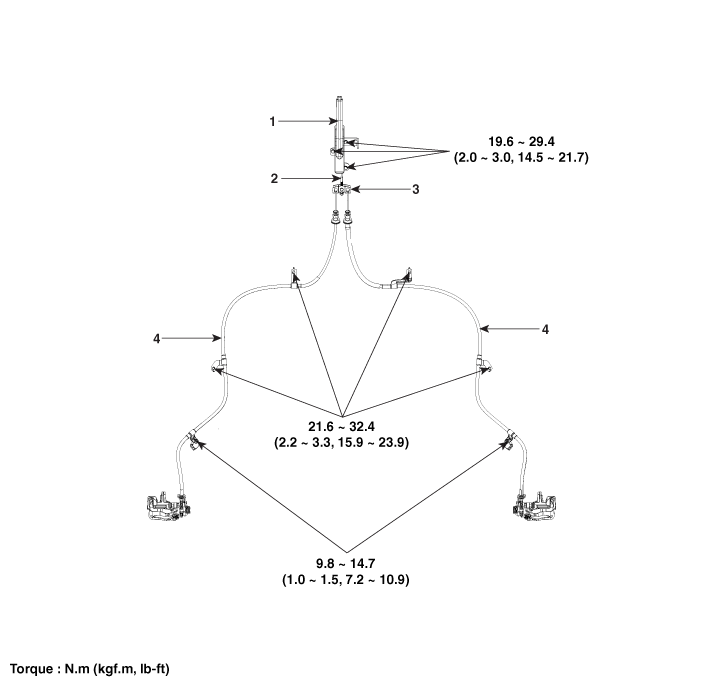

Kia Rio: Components - Parking Brake System - Brake System - Kia Rio UB 2012-2024 Service ManualKia Rio: Components


1. Parking brake lever
2. Adjuster cable
3. Equalizer assembly
4. Parking brake cable
