Kia Rio: Components Location - Automatic Transaxle Control System - Automatic Transaxle System - Kia Rio UB 2012-2025 Service ManualKia Rio: Components Location

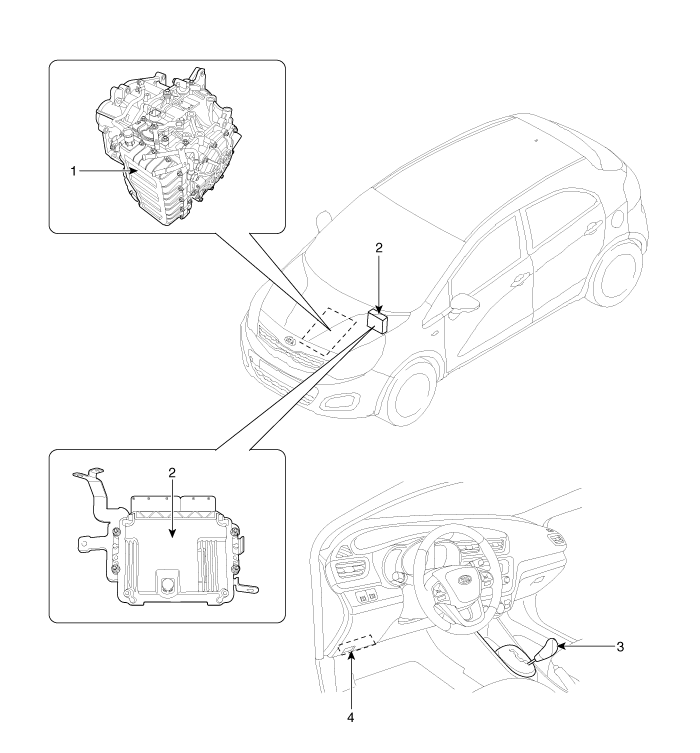

[Vehicle Components]


1. Automatic transaxle
2. Transaxle control module (TCM)
3. Shift lever
4. Data Link Connector (DLC)

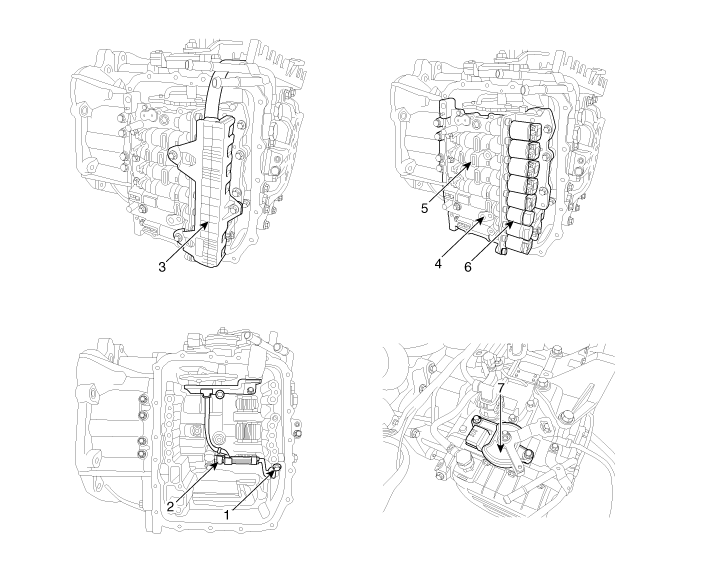

[Transaxle Components]


1. Input speed sensor
2. Output speed sensor
3. Solenoid valve connect
4. Oil temperature sensor
5. Valve body assembly
6. Solenoid valve
7. Inhibitor switch

Circuit Diagram
...

Transaxle Control Module (TCM) Description
Transaxle Control Module (TCM) is the automatic transaxle's brain. The module receives and processes signals from various sensors and implements a wide range of transaxle controls to ensu ...
