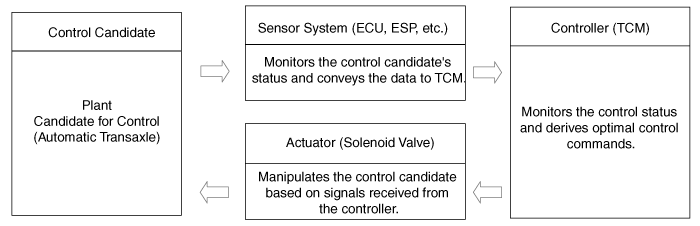

Kia Rio: Control System Composition - Automatic Transaxle Control System - Automatic Transaxle System - Kia Rio UB 2012-2024 Service ManualKia Rio: Control System Composition


Fault Diagnosis
Features a fail-safe mechanism that prevents dangerous situations from developing in the event of a transaxle failure. The limp home mode engages if the transaxle malfunctions. In this mode, the transaxle operates at a minimal functionality level, making it possible for the vehicle to reach a service center.
Fail-Safe: Prevents dangerous situations from developing in the event of a malfunction.
Limp Home: Maintains minimal functionality (*) in the event of a malfunction, making it possible for the vehicle to reach a service center.
(*) Minimal Functionality: Drive (fixed gear setting), Reverse, and Neutral
Self-diagnosis
TCM is in constant communication with the control system's components (sensors and solenoids). If an abnormal signal is received for longer than the predefined duration, TCM recognizes a fault, stores the fault code in memory, and then sends out a fault signal through the self-diagnosis terminal. Such fault codes are independently backed up and will not be cleared even if the ignition switch is turned off, the battery is disconnected, or the TCM connector is disconnected.


Disconnecting a sensor or an actuator connector while the ignition switch is in the "On" position generates a diagnostic trouble code (DTC) and commits the code to memory. In such event, disconnecting the battery will not clear the fault diagnosis memory. The diagnosis tool must be used to clear the fault diagnosis memory.
Before removing or installing any part, read the diagnostic trouble codes and then disconnect the battery negative (-) terminal.
Before disconnecting the cable from battery terminal, turn the ignition switch to OFF. Removal or connection of the battery cable during engine operation or while the ignition switch is ON could cause damage to the TCM.
When checking the generator for the charging state, do not disconnect the battery '+' terminal to prevent the ECM from damage due to the voltage.
When charging the battery with the external charger, disconnect the vehicle side battery terminals to prevent damage to the TCM.
Checking Procedure (Self-diagnosis)


When battery voltage is excessively low, diagnostic trouble codes can not be read. Be sure to check the battery for voltage and the charging system before starting the test
Diagnosis memory is erased if the battery or the TCM connector is disconnected. Do not disconnect the battery before the diagnostic trouble codes (DTC) are completely read and recorded.
Inspection Procedure (Using the GDS)
1.
Turn OFF the ignition switch.
2.
Connect the GDS to the data link connector on the lower crash pad.
3.
Turn ON the ignition switch.
4.
Use the GDS to check the diagnostic trouble code.
5.
Repair the faulty part from the diagnosis chart.
6.
Erase the diagnostic trouble code.
7.
Disconnect the GDS.


Perform TCM learning after replacing the automatic transaxle to prevent slow automatic transaxle response, jerky acceleration and jerky startup. (Refer to "Automatic transaxle control system (Repair procedures)" in this group)
Adding automatic transaxle fluid. (Refer to "Hydraulic system (Fluid)" in this group)
After servicing the automatic transaxle or TCM, clear the diagnostic trouble code (DTC) using the GDS tool. Diagnostic trouble codes (DTC) cannot be cleared by disconnecting the battery.
