Kia Rio: Crash Pad Components - Interior - Body (Interior and Exterior) - Kia Rio UB 2012-2025 Service ManualKia Rio: Crash Pad Components

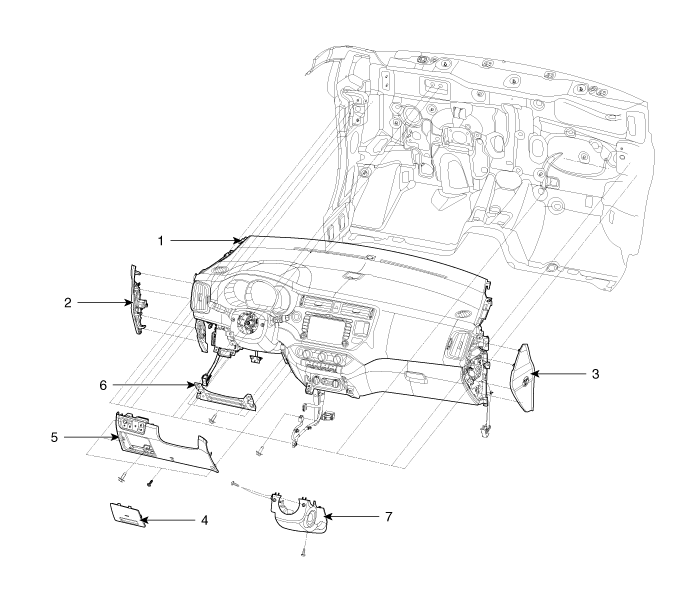

(1)


1 . Main crash pad assembly
2 . Crash pad side cover [LH]
3 . Crash pad side cover [RH]
4 . Fuse box cover
 5 . Crash pad lower panel
6 . Knee bolster panel
7 . Steering column lower shroud

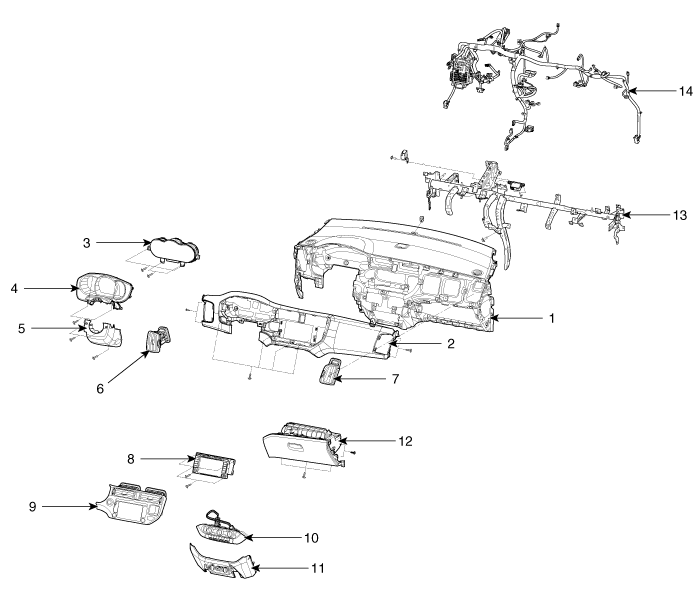

(2)


1 . Main crash pad cover
2 . Crash pad upper panel
3 . Cluster assembly
4 . Cluster fascia panel
5 . Steering column lower Shroud
6 . Side air vent duct [LH]
7 . Side air vent duct [RH]
 8 . Audio assembly
9 . Center fascia panel
10 . Heater control unit
11 . Crash pad center panel
12 . Glove box
13 . Cowl cross bar assembly
14 . Main wiring harness
