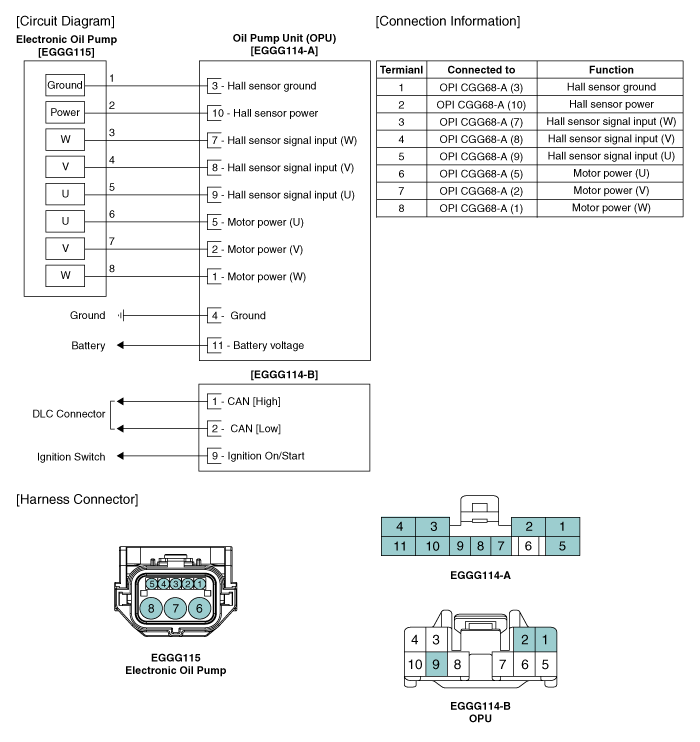

Kia Rio: Oil Pump Unit (OPU) Circuit diagram

Oil Pump Unit (OPU) Connector

Opu Connector Terminal Function EGGG114-A EGGG114-B Pin No. Description Pin No. Description 1 Motor power(W) ...

Oil Pump Unit (OPU) Removal

1. Remove the negative (-) battery terminal. 2. Remove the crash pad lower panel. (Refer to “Crash pad” in BD group.) ...
