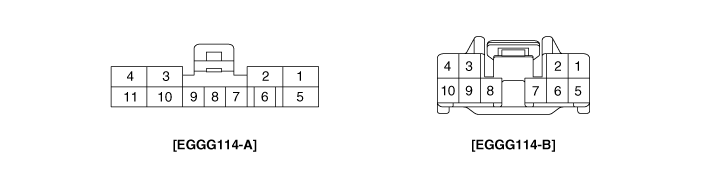

Opu Connector Terminal Function |
EGGG114-A |
EGGG114-B |
||
Pin No. |
Description |
Pin No. |
Description |
1 |
Motor power(W) |
1 |
CAN communication (High) |
2 |
Motor power(V) |
2 |
CAN communication (Low) |
3 |
Hall sensor(Ground) |
3 |
- |
4 |
Ground |
4 |
- |
5 |
Motor power(U) |
5 |
- |
6 |
Shield ground |
6 |
- |
7 |
Hall sensor signal input (W) |
7 |
- |
8 |
Hall sensor signal input (V) |
8 |
- |
9 |
Hall sensor signal input (U) |
9 |
Ignition ON / Start |
10 |
Hall sensor power |
10 |
- |
11 |
Battery voltage |
|
|
