Kia Rio: Washer fluid

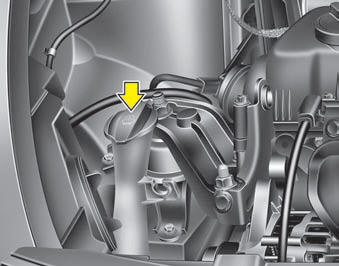

Checking the washer fluid level
Check the fluid level in the washer fluid reservoir and add fluid if necessary. Plain water may be used if washer fluid is not available.
However, use washer solvent with antifreeze characteristics in cold climates to prevent freezing.
WARNING - Windshield fluid
Do not drink the windshield washer fluid. The windshield washer fluid is poisonous to humans and animals.
WARNING - Flammable fluid
Do not allow the washer fluid to come in contact with open flames or sparks. The windshield washer fluid is flammable under certain circumstances. This can result in a fire.
Brake fluid
Checking the brake/clutch fluid level
Check the fluid level in the reservoir periodically. The fluid level should be
between MAX and MIN marks on the side of the reservoir.
Before removing the r ...
Parking brake
Checking the parking brake
Check the stroke of the parking brake by counting the number of “clicks’’ heard
while fully applying it from the released position. Also, the parking brake alone
shou ...
