Kia Rio: Audio Remote Control Schematic Diagrams - Audio - Body Electrical System - Kia Rio UB 2012-2025 Service ManualKia Rio: Audio Remote Control Schematic Diagrams

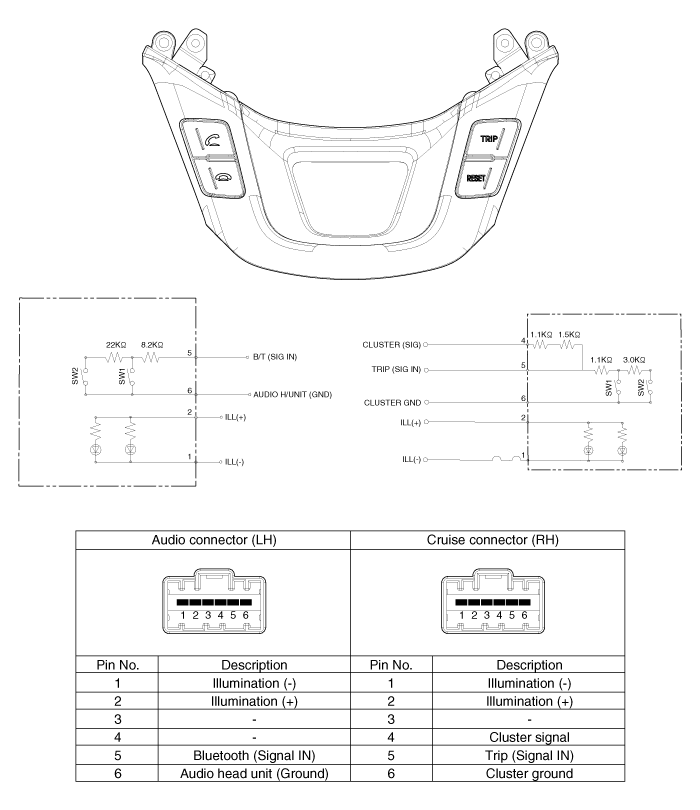

Circuit Diagram (1)

Circuit Diagram (2)


Circuit Diagram (2)

Audio Remote Control Inspection


Antenna Installation
1. Install the roof antenna, then connect the cable and the connector. 2. Install the rear roof trim. ...

Audio Remote Control Inspection
1. Check the audio remote control switch (A) for resistance between No.5 and No.7 terminals in each switch position. Switch Connect ...
