Kia Rio: Manual Transaxle Components

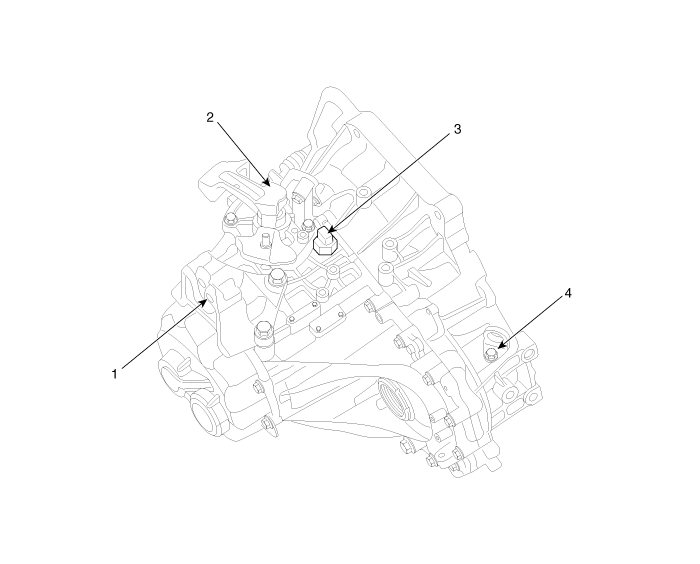

| 1. Transaxle support mounting bracket 2. Control shaft complete |
3. Back up lamp switch 4. Vehicle speed sensor |
